Wireless vs Wired Load Cells – Which Should You Choose for Industrial Lifting?
Choosing between wireless and wired load cells is a common question in industrial lifting, crane operations, rigging, and load monitoring applications. While both technologies measure force accurately, their differences significantly affect safety, installation time, flexibility, and long-term reliability.
Understanding when to use each type is critical for selecting the right solution for your operation.

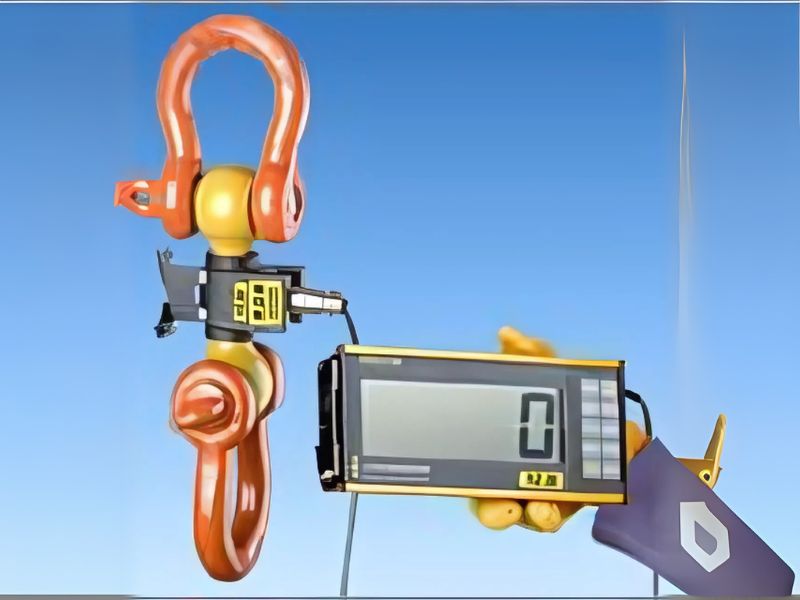

What Is a Wired Load Cell?
A wired load cell transmits load data through a physical cable to a display, controller, or data acquisition system. These systems have been used for decades and are still common in fixed installations and laboratory environments.
Typical characteristics:
- Physical signal cable
- Direct connection to a controller
- Continuous power supply
- Stable signal in controlled environments
Wired load cells are reliable but require careful cable routing and protection.
What Is a Wireless Load Cell?
A wireless load cell transmits load data via RF or Bluetooth communication to a handheld receiver, tablet, or monitoring system. Power is typically supplied by an internal battery.
Wireless load cells are designed for mobility, safety, and fast deployment, especially in crane lifting and temporary installations.
Wireless vs Wired Load Cells – Key Differences
| Feature | Wireless Load Cell | Wired Load Cell |
|---|---|---|
| Installation time | Very fast | Slower |
| Cable management | None | Required |
| Risk of cable damage | None | High |
| Monitoring distance | Long-range | Cable-limited |
| Operator safety | High (remote viewing) | Medium |
| Flexibility | Excellent | Limited |
| Maintenance | Low | Higher |
| Multipoint capability | Excellent | Limited |
When Should You Use a Wired Load Cell?
Wired load cells are best suited for:
- Permanent installations
- Test benches and laboratories
- Fixed machinery monitoring
- Controlled indoor environments
- Applications with short cable runs
- Systems requiring continuous power
In these cases, the stability of a wired connection can be advantageous.
When Should You Use a Wireless Load Cell?
Wireless load cells are the preferred choice for:
- Crane lifting operations
- Temporary or mobile installations
- Outdoor and harsh environments
- Offshore and marine lifting
- Construction sites
- Entertainment rigging
- Applications requiring long monitoring distance
- Situations where operator safety requires remote viewing
Wireless systems significantly reduce setup time and eliminate cable-related failures.
Wireless Load Cells and Safety
One of the biggest advantages of wireless load cells is operator safety.
By allowing personnel to monitor loads from a safe distance, wireless systems:
- Reduce exposure to suspended loads
- Improve situational awareness
- Allow faster reaction to overload conditions
This makes wireless load cells especially valuable during critical or high-risk lifts.
Multipoint Load Monitoring: Wireless Advantage
Modern lifting operations often involve multiple load points. Wireless load cells make multipoint monitoring practical by allowing dozens of sensors to transmit simultaneously to a single system.
Multipoint monitoring enables:
- Real-time load balance verification
- Detection of uneven loading
- Total load calculation
- Overload alarms per point
This is extremely difficult to achieve with wired systems in dynamic lifting environments.
Cost Considerations: Wireless vs Wired
While wireless load cells typically have a higher initial cost, they often result in:
- Lower installation labor
- Reduced downtime
- Fewer maintenance issues
- Improved operational efficiency
- Higher safety margins
When evaluating total cost of ownership, wireless solutions are often more economical over time.
Eilon Engineering Load Cell Solutions
Eilon Engineering offers both wireless and wired load cell solutions, allowing customers to select the right technology for their application.
Key advantages of Eilon wireless systems include:
- Exceptionally long battery life
- Long-range wireless communication
- High accuracy and stability
- Rugged industrial design
- Seamless multipoint monitoring integration
- High safety factors
These features make Eilon wireless load cells ideal for demanding lifting environments.
If you’re unsure whether a wireless or wired load cell is the right choice for your application, our engineering team can help you evaluate your requirements and select the optimal solution.
