What Is a Wireless Load Cell? Full Guide for Industrial Lifting
A wireless load cell is a load-measuring sensor designed to transmit real-time force, tension, or compression data without the need for physical cables. These systems are widely used in crane lifting, rigging, heavy manufacturing, ports, construction, offshore operations, and any application where access, distance, or safety concerns make wired systems impractical.
Wireless load cells have become a standard in modern lifting because they provide safer workflow, greater flexibility, and faster setup, especially when long distances or multipoint measurements are required.
How a Wireless Load Cell Works
A wireless load cell operates by converting mechanical force (tension or compression) into an electrical signal, which is transmitted via RF, Bluetooth, or proprietary long-range protocols to a handheld display, computer, or cloud system.
Key components:
- Load-measuring element (strain gauge or shear pin)
- Wireless transmitter (battery powered)
- Receiver / base station
- Software for monitoring, alarms, and logging
Why wireless?
- Eliminates cable failures
- Faster installation
- Safer operation in dynamic environments
- Enables monitoring at long distances
- Supports complex lifting operations
- Allows personnel to stand clear of hazards
Wireless Load Cells vs Wired Load Cells
| Feature | Wireless Load Cell | Wired Load Cell |
|---|---|---|
| Mobility | Excellent | Limited |
| Setup time | Very fast | Medium–slow |
| Cable risk | None | High (damage, tangling, safety issues) |
| Distance range | Long (hundreds of meters) | Cable-limited |
| Battery | Required | Not required |
| Reliability | High with quality hardware | High but cable-dependent |
| Multipoint capability | Excellent | Very limited |
Wireless systems outperform wired systems especially in cranes, entertainment rigging, offshore lifting, and multi-point load monitoring.
Benefits of Wireless Load Cells for Crane and Industrial Lifting
✔ 1. Improved Safety
Operators can monitor loads from a distance, avoiding danger zones.
✔ 2. Fast Setup and Removal
Wireless units dramatically reduce installation time, especially where cable routing is difficult.
✔ 3. Long-Distance Operation
High-quality systems offer hundreds of meters of wireless range—even in environments with interference.
✔ 4. Real-Time Monitoring
Continuous live readings reduce overload risk and help maintain compliance with safety standards.
✔ 5. Lower Maintenance
No cables → no cable failures.
✔ 6. Multi-point Load Monitoring
Wireless load cells enable synchronised monitoring of dozens or hundreds of points simultaneously.
Industrial Applications of Wireless Load Cells
Wireless load cells are used in:
✔ Ports & Terminals
Container lifting, spreader bars, gantry cranes
✔ Construction
Tower cranes, mobile cranes, structural lifting
✔ Oil & Gas / Offshore
Barge loading, rigging, anchor testing, subsea lifting
✔ Aerospace & R&D
Structural testing, force measurement, static/dynamic monitoring
✔ Heavy Manufacturing
Equipment installation, load proof testing, machine alignment
✔ Entertainment & Live Events
Rigging, truss monitoring, multi-point hoist load balancing
Wireless Load Cells for Multi-point Load Monitoring
Modern industrial lifts often involve complex rigging structures where weight distribution must be monitored across multiple load points.
Wireless load cells allow operators to see:
- total load
- individual loads
- load imbalance
- overload warnings
- trends over time
This improves safety and prevents equipment damage.
Choosing the Right Wireless Load Cell
When selecting a wireless load cell, consider:
- Capacity
- Accuracy requirements
- Battery life
- Wireless range
- Environmental resistance (IP rating)
- Safety factors
- Software capabilities (logging, alarms, multipoint)
High-end systems provide:
- Exceptional battery life
- High accuracy
- Long-range RF
- Robust construction
- Multi-point integration
Eilon Engineering: Advanced Wireless Load Monitoring Solutions
Eilon Engineering’s Ron line offers:
- Extremely long battery life
- Lightweight but strong design
- Long-range wireless communication
- High safety factors

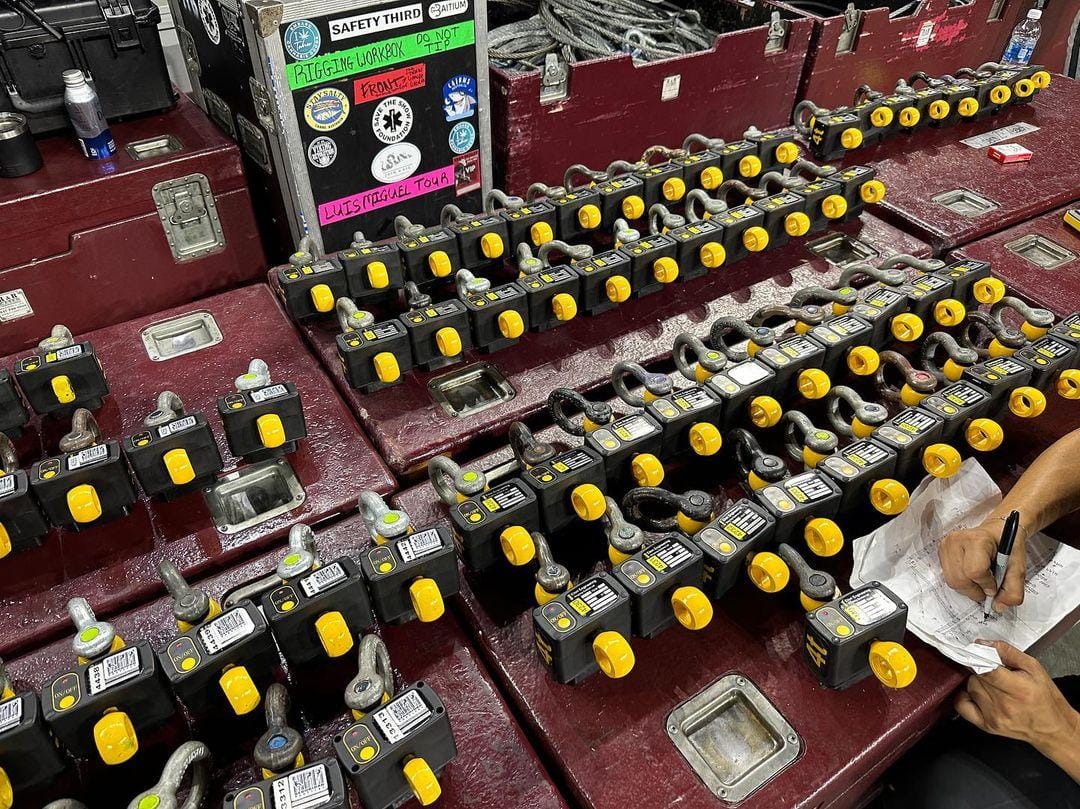

- Multi-point load monitoring systems (Ron StageMaster & Ron CraneMaster)
- Industry-leading reliability
Wireless load cells are a critical part of safe and efficient industrial lifting.
Choosing the right system improves safety, saves time, and reduces operational risk.
If you're looking for a reliable wireless load monitoring solution for cranes, multipoint lifting, or industrial applications, contact our engineering team for specifications or personal guidance.
