What Is a Load Monitoring System? Full Guide for Safe Crane & Industrial Lifting (2025)
A load monitoring system is a real-time measurement solution used to track the force applied to lifting equipment such as cranes, rigging assemblies, hoists, and structural supports. These systems help prevent overload situations, improve lifting efficiency, and enhance safety in demanding industrial environments.
Load monitoring has become a fundamental requirement in industries such as construction, ports, offshore, manufacturing, aerospace, live events, and heavy transport — where inaccurate load estimation can lead to equipment failure, costly downtime, or severe safety incidents.
How a Load Monitoring System Works
Load monitoring systems combine load sensors (usually load cells) with receivers, software, and wireless communication.
Core components include:

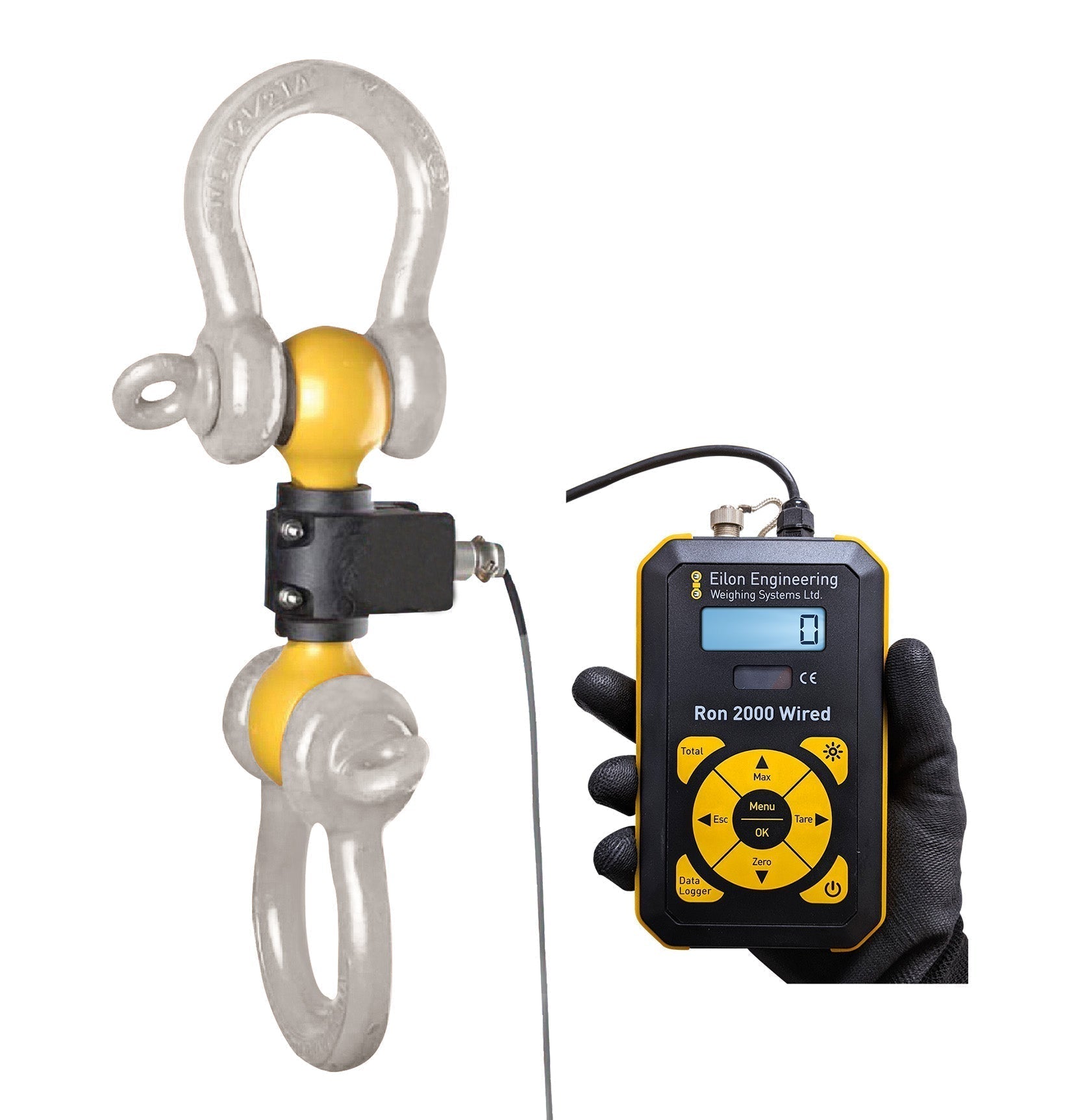

- Load Cells / Dynamometers – measure tension or compression
- Transmitters – wired or wireless (RF/Bluetooth)
- Receivers / Displays – handheld, tablet, or control room systems
- Software – logs data, displays trends, creates alarms
Process overview:
- The load is applied to the lifting point.
- The load cell converts force into an electrical signal.
- The signal is transmitted to a receiver.
- Operators monitor live readings.
- Alarms trigger if thresholds are exceeded.
The ability to view accurate load values in real time dramatically reduces risk and allows operators to make fast, informed decisions.
Why Load Monitoring Is Essential for Crane Operations
✔ 1. Prevents overloads
Overloading can cause structural deformation, cable failure, or crane tipping. Real-time monitoring prevents unsafe lifts.
✔ 2. Improves lift planning
Operators can confirm load distribution and balance before committing to a lift.
✔ 3. Enhances safety compliance
Many industries now require documented load monitoring during critical lifts.
✔ 4. Reduces equipment wear
Proper load distribution lowers stress on rigging components.
✔ 5. Supports dynamic lifting
During movement, loads fluctuate — monitoring shows these variations instantly.
Multipoint Load Monitoring: The Logical Evolution
Traditional lifting methods monitor one point at a time, which is insufficient for modern multi-hook or spreader-bar configurations.
A multi-point load monitoring system allows operators to track:
- Individual loads
- Total load
- Load balance
- Overload conditions
- Shifting forces during movement
This is crucial for:
- Bridge beam installations
- Large structure repositioning
- Heavy machinery installation
- Entertainment rigging grids
(Eilon Engineering is a global leader in multipoint load monitoring.)
Wireless vs Wired Load Monitoring Systems
| Feature | Wireless Systems | Wired Systems |
|---|---|---|
| Setup time | Very fast | Moderate–slow |
| Cable risk | None | High |
| Range | Long-distance | Cable-limited |
| Maintenance | Low | Higher |
| Multipoint capability | Excellent | Limited |
| Environmental resistance | High | Medium |
| Flexibility | Superior | Limited |
Wireless systems are now the preferred solution for crane lifting, ports, and complex industrial projects.
Real-World Applications of Load Monitoring Systems
🏗 Construction
- Tower crane lifts
- Prefabricated component placement
⚓ Ports & Terminals
- Container lifting
- Spreader bar load monitoring
🛢 Offshore & Oil/Gas
- Rigging operations
- Heavy subsea lifting
- Anchor tension monitoring
🏭 Manufacturing
- Machine installation
- Structural testing
🎡 Entertainment & Events
- Truss monitoring
- Hoist load balancing
Choosing the Right Load Monitoring System
When selecting a system, consider:
- Load capacity
- Number of points
- Wireless range
- Battery life
- Accuracy
- Alarm capabilities
- Environmental rating
- Software integration
- Safety factors & certifications
Eilon Engineering Load Monitoring Solutions
Eilon Engineering provides a full range of Ron load monitoring systems, featuring:
- Long-range wireless communication
- Extremely long battery life
- High accuracy and safety factors
- Real-time multipoint monitoring
- Rugged construction for industrial conditions
- Proven performance in heavy lifting & entertainment rigging
Whether you need a single wireless load cell or a full multipoint system, Eilon systems offer unmatched reliability.
If you’re planning a critical lift or looking to improve operational safety, our engineering team can help you select the right load monitoring solution.
