If you’re looking for info on how to calibrate a crane scale, here’s the short answer: crane scale calibration is when you compare the scale’s reading to a known weight, and then adjust the scale’s settings until the reading correctly matches that weight.
Calibration ensures that your lifting operations will be accurate, safe, and compliant, whether you’re in manufacturing, shipping, construction, logistics, or any other related field.
But crane scale calibration is more than just a technical task—it’s an important safety practice. Even a small measurement error can lead to overloaded equipment, damaged materials, or dangerous conditions. Hence, regular calibration must be part of every company’s maintenance and safety plan.
What is crane scale calibration?
Crane scale calibration is the process of ensuring a scale’s measurements are accurate by comparing a known weight to the scale's readings. If there's a discrepancy, adjustments are made to bring the scale back to an acceptable level of weight accuracy tolerance.
In other words, calibration is how we know that a scale is measuring what it’s supposed to.
Why calibration matters
Safety
An inaccurate scale is a safety hazard. Inaccurate weight readings can lead to unintended overloads of both the crane scale and the crane itself. Exceeding a crane’s max lifting capacity risks equipment failure and even crane collapse, leading to injury or even death.
Compliance
Many industries have regulations requiring regular calibration of weighing equipment, and certified calibration records may be required for audits, ISO 9001 compliance, or safety checks. Failing to comply could result in fines or even the stoppage of operations.
Accuracy and productivity
Inaccurate readings can cost money. Overpaying for materials due to weight mistakes, or under-charging clients, can impact profits. Even a 2% inaccuracy can result in significant financial losses.
And, of course, damaging expensive equipment is also a factor.
How often should you calibrate a crane scale?
The exact answer to how often to calibrate your crane scale can vary depending on various factors. But a general rule is:
- Annually for standard industrial use
- Every six months for high-volume or critical applications
- After any shock load, repair, or relocation
Another good practice is to occasionally verify the scale’s accuracy between scheduled calibrations by using a known weight.
💡Quick tip: For quick in-house verifications, keep a weight reference handy (80–90% of your scale’s maximum capacity if possible).
Step-by-step: how to calibrate a crane scale
Below, we’ll walk you through a general crane scale calibration process. However, it’s important to always follow the precise instructions laid out by your scale’s manufacturer.
Step 1: Power on and zero the scale
Turn the scale on and make sure there’s no weight or force applied to it. It should read 0.0 kg, lb, or whichever unit of measurement you’re using. If it doesn’t, press the Zero or Tare button, which should bring the reading to 0.0.
Step 2: Prepare the calibration load
The load you use for calibration should be between 80%–100% of the scale’s maximum capacity. For example, if your scale has a 5,000 kg limit, use a load that’s between 4,000–5,000 kg.
Step 3: Lift the load carefully
Attach the calibration load to the scale and begin to lift it as per usual until fully suspended. Once the load is stable and the reading is steady, record this measurement.
Step 4: Compare and adjust
Compare the reading from step 3 to the certified calibration load. If they match, your scale is properly calibrated. If there’s a discrepancy, you’ll need to consult your user’s manual to enter the scale’s calibration mode.
Once there, adjust the gain or span until the displayed reading matches the calibration load.
Step 5: Re-verify the zero
Once successfully calibrated, remove the load and make sure the display returns to zero. If it doesn’t, zero the scale again and re-preform the calibration.
Step 6: Perform verification loads
Check the calibration further by lifting several known weights to confirm consistent accuracy across the scale’s range. Good practice is to use weights that are close to 25%, 50%, 75% of the max capacity.
Record the results in your calibration log.
Step 7: Document the calibration
Record the following:
- Scale’s serial number
- Date, time, and operator
- Reference weights used
- Pre- and post-calibration readings
- Adjustments made
Store this document in your maintenance and safety records — it’s essential for audits and traceability.
Common calibration mistakes (and how to avoid them)
|
Mistake |
Why it’s a Problem |
How to prevent it |
|
Using uncertified weights |
Creates false accuracy |
Always use certified test weights |
|
Calibrating in unstable conditions |
Vibrations or air currents affect readings |
Perform calibration in calm, stable conditions |
|
Ignoring zero drift |
Causes cumulative errors |
Always reset to zero before each test |
|
Forgetting documentation |
Breaks traceability |
Keep a digital or paper calibration log |
Recommended calibration frequency and professional support
At a minimum, Eilon Engineering recommends annual calibration, performed at a certified laboratory.And for certain industries like aerospace, energy, or construction, calibration should be more frequent because of both the higher requirements for precision and environmental stress.

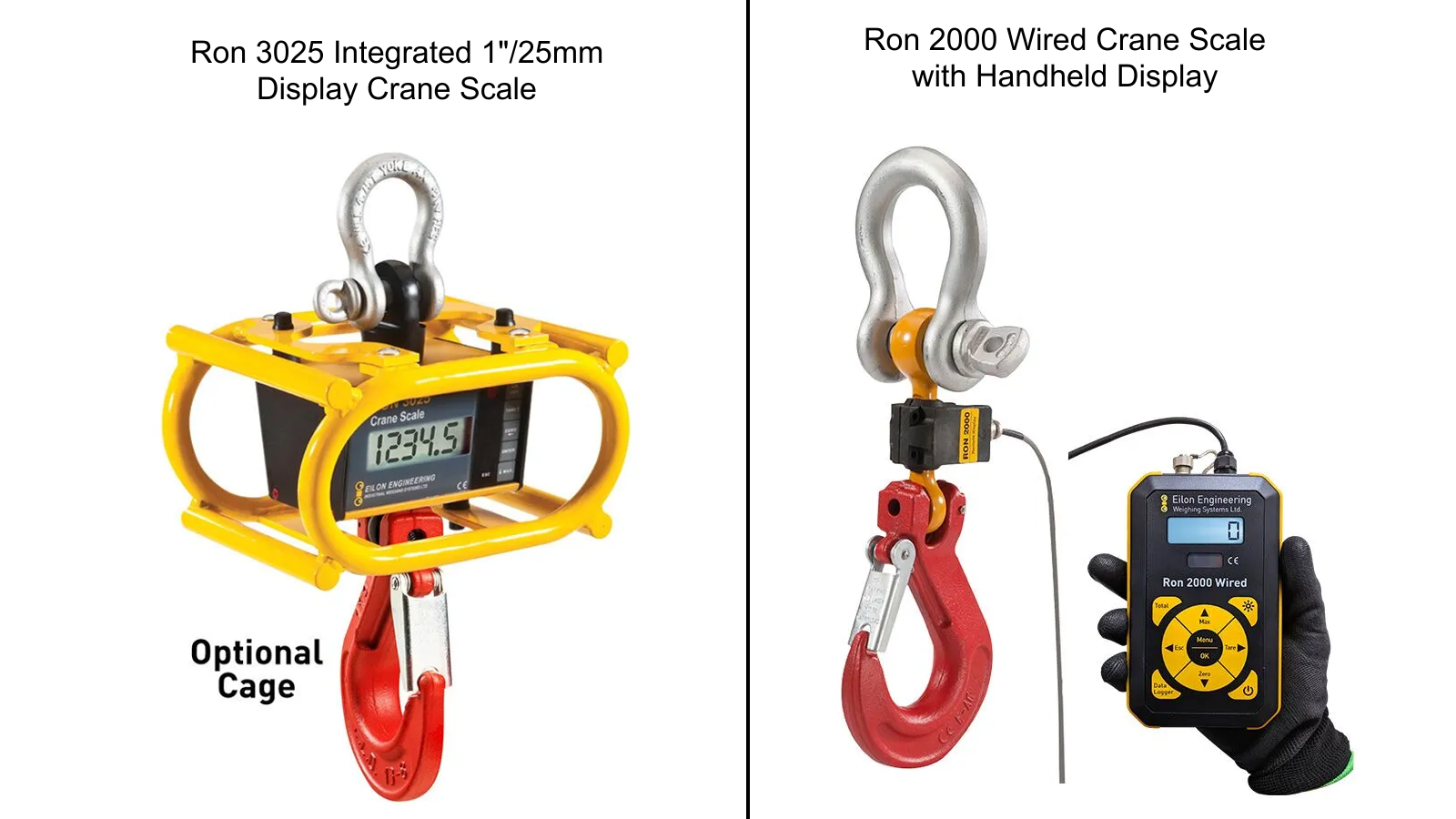

Eilon Engineering offers wireless load monitoring and digital crane scale systems that maintain calibration longer, provide real-time data, and meet ISO and OIML standards.
These advanced systems minimize drift and simplify verification.
Frequently asked questions
Q: Can I calibrate a crane scale myself?
A: Yes, but only if you have the proper equipment and understanding of the process.
For certified results, use a professional calibration service.
Q: How do I know my crane scale needs calibration?
A: Inconsistent readings, zero drift, or differences when compared with known weights indicate it’s time to recalibrate.
Q: What’s the difference between calibration and verification?
A: Calibration adjusts the scale’s readings to match known weights, while verification simply checks that it’s still accurate.
Q: Can weather or temperature affect accuracy?
A: Yes. Extreme temperature changes can affect load cell sensitivity. Recalibrate or verify after significant temperature shifts.
Q: What is “zero drift”?
A: This is when the scale’s display slowly shifts away from zero even when no load is applied. It usually happens due to temperature changes, electrical noise, or other factors, and is a sign that the scale may need inspection or recalibration.
