Crane Dynamometer – What It Is, How It Works, and When to Use It (2025 Guide)
A crane dynamometer is a load-measuring device used to monitor tension forces during lifting operations. Installed inline between the crane hook and the load, a dynamometer provides real-time feedback on the actual force applied during a lift.
Crane dynamometers are widely used in construction, ports, offshore operations, manufacturing, heavy transport, and crane rental fleets, where accurate load measurement is critical for safety and compliance.
What Is a Crane Dynamometer?
A crane dynamometer is essentially a tension load cell designed for lifting applications. It measures the pulling force exerted on the lifting system and displays that value on a local or remote receiver.

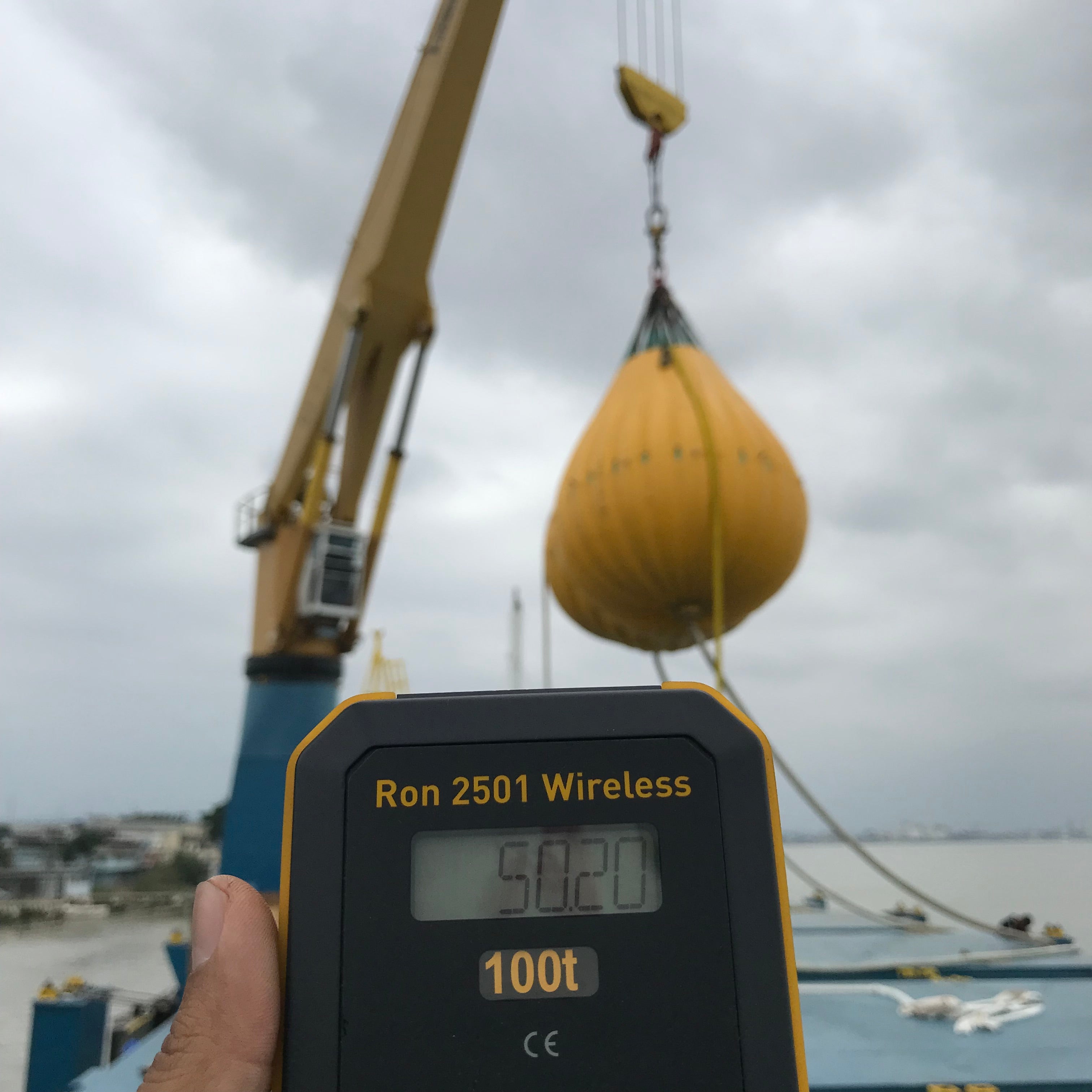

Modern crane dynamometers are often wireless, eliminating cables and allowing operators to monitor loads from a safe distance.
Typical installation:
How a Crane Dynamometer Works
A crane dynamometer operates using strain gauge technology.
Step-by-step:
- The crane applies force to lift the load
- The dynamometer body experiences tension
- Strain gauges detect micro-deformation
- Electronics convert this into a load value
- The reading is transmitted wirelessly to a display or system
This allows operators to see live load values throughout the lift, including dynamic changes caused by movement or acceleration.
Why Use a Crane Dynamometer?
✔ Prevent overload conditions
Actual load often differs from calculated load. A dynamometer verifies reality.
✔ Improve lifting safety
Real-time monitoring allows immediate reaction to unsafe conditions.
✔ Validate lift planning
Confirms correct load distribution before and during lifting.
✔ Support compliance & documentation
Critical lifts often require recorded load data.
✔ Reduce equipment stress
Avoids unintentional overloading of hooks, slings, and structures.
Wireless Crane Dynamometers vs Wired Systems
| Feature | Wireless Dynamometer | Wired Dynamometer |
|---|---|---|
| Installation | Fast | Slower |
| Cable risk | None | Present |
| Monitoring distance | Long-range | Limited |
| Operator safety | High | Medium |
| Multipoint support | Excellent | Limited |
| Field flexibility | Very high | Low |
Wireless crane dynamometers are now the industry standard for most lifting applications.
Crane Dynamometer vs Loadshackle
Many crane dynamometers are designed in a loadshackle format, combining a shackle body with integrated load measurement.
Key differences:
- Standard shackle → connects lifting components only
- Loadshackle / dynamometer → connects + measures load
Loadshackle dynamometers are ideal when:
- Headroom is limited
- Fast installation is required
- Frequent lifting changes occur
When Should You Use a Crane Dynamometer?
Use a crane dynamometer when:
- Lifting unknown or variable loads
- Performing test lifts
- Working with critical or high-risk loads
- Operating near crane capacity
- Managing multiple lifting points
- Documenting load data for safety audits
Multipoint Crane Dynamometer Systems
For complex lifts involving multiple hooks or lifting points, multipoint dynamometer systems allow operators to monitor:
- Individual point loads
- Total load
- Load imbalance
- Overload alarms
This is especially valuable in:
- Spreader beam lifts
- Large structural assemblies
- Entertainment rigging
- Synchronized crane operations
Eilon Engineering Crane Dynamometer Solutions
Eilon Engineering’s Ron wireless dynamometers are designed specifically for demanding crane and lifting environments.
Key advantages include:
- Long-range wireless communication
- Extremely long battery life
- High accuracy and stability
- Loadshackle and dynamometer formats
- Seamless integration into multipoint systems
- High safety factors and rugged construction
Eilon dynamometers are commonly used as alternatives to traditional loadshackle dynamometers while offering enhanced monitoring capabilities.
If you’re evaluating crane dynamometers or planning a critical lift, our engineering team can help you select the right solution for your application.
